Electronic Universal Testing Machine for Tensile and Elongation Testing
This professional electronic universal testing machine is designed for comprehensive material and performance analysis through tensile and elongation testing. It provides precise measurement of static load performance and core mechanical characteristics.
Applications
This mechanical testing device detects static load performance and core mechanical characteristics of diverse materials, including tension, compression, bending, shearing, tearing and peeling properties. It is suitable for comprehensive physical and mechanical performance tests on:
- Plastic plates, pipes, and profiles
- Plastic films and rubber materials
- Wires, cables, and steel products
- Fiberglass materials and composites
Compliance Standards
This testing apparatus conforms to multiple internationally recognized and domestic industrial specifications, including:
- ASTM D903, ASTM E8, CNS11888, JIS K6854
- PSTC7, ASTM E4, ASTM D828, ASTM D882
- ASTM D1938, ASTM D412, ASTM D3330
- ASTM F88, ASTM F904, ISO 8339, ISO 37
- ISO 527, ISO 178, CNS-11888, PSTC-7
- JIS P8113, QB/T 2358, QB/T 1130
Software Capabilities
The device supports automatic zero calibration and intelligently calculates key mechanical performance indicators, including maximum force, upper-yield strength, lower-yield strength, anti-tensile intensity, anti-compression strength, elasticity modulus, and percentage of elongation.
Technical Specifications - Model XWW-10KN
| Parameter |
Specification |
| Type |
Double column model |
| Accuracy Grade |
Class 1 (Class 0.5 optional) |
| Force-measuring Range |
1%~100%FS (0.4%~100%FS optional) |
| Deformation-measuring Range |
2%~100%FS |
| Deformation-measuring Accuracy |
±1% |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.05~500mm/min |
| Displacement Speed Accuracy |
≤ ±0.5% |
| Metal Extensometer Accuracy Grade |
±0.5% |
| Test Width |
380mm |
| Tensile Space |
700mm |
| Compression Space |
1000mm |
| Clamps |
Tensile, compression, bending fixture |
| PC System |
Equipped with brand computer |
| Power Supply |
AC 220V±10%, 50Hz (customizable) |
| Host Size |
700×400×2000mm |
| Packing Size & Weight |
800×500×2100mm, approximately 350kg |
Intended Use
Developed specifically for evaluating the tensile characteristics of molded and extruded plastics, this Universal Testing Machine assesses mechanical behaviors of diverse materials under static load conditions. It accommodates a complete suite of mechanical testing procedures, including tensile, compression, bending, shear, tear and peel tests.
Frequently Asked Questions
What core application does an Electronic Universal Testing Machine serve?
Developed for precision material inspection, this Electronic Universal Testing Machine quantifies key mechanical traits such as tensile strength, compressive strength, modulus of elasticity and elongation rate of test specimens.
Which raw material categories fit the inspection scope of this testing device?
It covers an extensive material range consisting of metallic specimens, plastic raw stocks, elastomer products as well as varied composite materials for mechanical characterization.
What level of measuring precision can Electronic Universal Testing Machines achieve?
The instrument maintains outstanding measuring accuracy, with reading error controlled within ±0.5% against the true physical value of samples.
Which standard mechanical experiments can be executed on an Electronic Universal Testing Machine?
The equipment is compatible with mainstream test items: tensile testing, compression testing, flexure testing, shear testing and tear testing for material performance research.
What practical merits does the Electronic Universal Testing Machine bring to lab testing work?
It balances economical procurement cost and reliable test accuracy for mechanical property detection; straightforward operating logic shortens test cycles and accelerates result output to streamline daily laboratory inspection procedures.

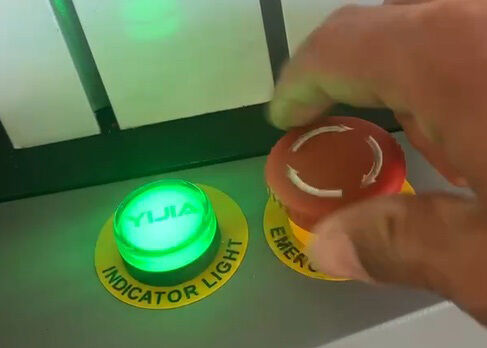

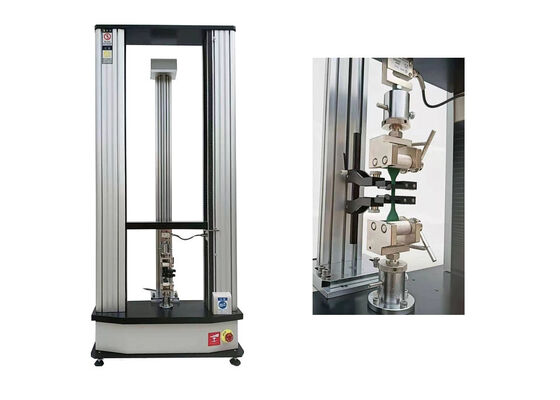

Product Images
